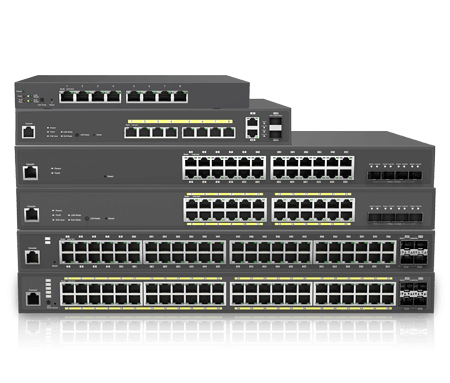

Gigabit千兆網路交換器

Model: ECS1008P, EWS2910P, ECS1112FP, EWS7928P, EWS1200-28TFP, ECS1528系列, EWS7952系列, ECS1552系列

產品特點

具有網路管理功能的第二層/次第三層乙太網路交換器,提供企業級功能,搭配網路管理工具,可簡化網路組態並具備監看介面。

  • 可執行本地內部管理或透過雲端管理網路 (ECS系列)
  • 8/10/24/48個100/1000 Mbps千兆乙太網端口
  • 4個1000/10000 SFP +端口 (ECS1528系列/ECS1552系列)
  • PoE機種具備8/24/48個網路供電埠口,最高支援802.3at
  • 桌上型或機架式安裝模組
  • 具備齊全的第二層/次第三層交換功能

產品規格

類別
項目
規格
技術
技術
交換器等級Layer 2+
CPURealtek RTL8380M (ECS1008P / EWS2910P /ECS1112FP) / Realtek RTL8382M (EWS7928P / EWS1200-28TFP) / Realtek RTL8393M (EWS7952P / EWS7952FP ) / Realtek RTL9301 (ECS1528系列) / Realtek RTL9311 (ECS1552系列)
MACRealtek RTL8380M (ECS1008P / EWS2910P /ECS1112FP) / Realtek RTL8382M (EWS7928P / EWS1200-28TFP) / Realtek RTL8393M (EWS7952P / EWS7952FP ) / Realtek RTL9301 (ECS1528系列) / Realtek RTL9311 (ECS1552系列)
PHYRealtek RTL8380M (ECS1008P / EWS2910P /ECS1112FP) / Realtek RTL8128B (EWS7928P / EWS1200-28TFP) / Realtek RTL8128D (ECS1528系列 / ECS1552系列)
PoE ChipsetBroadcom BCM59121 (ECS1008P /EWS2910P /ECS1112FP / EWS7928P / EWS1200-28TFP / EWS7952P / EWS7952FP / ECS1528FP / ECS1552FP)
連接埠標準802.3 10Base-T Ethernet , 802.3u 100Base-TX Ethernet , 802.3ab 1000Base-T Ethernet , 802.3x Full-Duplex Flow Control
千兆網路埠口8 (ECS1008P / EWS2910P) / 10 (ECS1112FP) / 24 (EWS7928P / EWS1200-28TFP / ECS1528系列) / 48 (EWS7952P / EWS7952FP / ECS1552系列)
SFP 光纖埠口2 (ECS1112FP) / 4 (EWS7928P / EWS1200-28TFP / EWS7952P / EWS7952FP)
SFP+ 光纖埠口4 (ECS1528系列 / ECS1552系列)
網路供電埠口1~8 (ECS1008P / EWS2910P / ECS1112FP) / 1~24 (ECS1528FP / ECS7928P) /1~48 (EWS7952P / EWS7952FP / ECS1552FP)
網路供電標準802.3af (ECS1008P / EWS2910P ) / 802.3af/at (ECS1112FP / EWS1200-28TFP / ECS1528FP/ ECS7928P/ EWS7952P / EWS7952FP / ECS1552FP))
最大供電能力55W (ECS1008P / ECS2910P) / 130W (ECS1112FP) / 250W (EWS7928P / 410W (EWS1200-28TFP / EWS7952P / ECS1528FP) / 740W (EWS7952FP / ECS1552FP)
交換能力16 Gbps (ECS1008P) / 20 Gbps (EWS2910P)/ 24 Gbps (ECS1112FP) / 56 Gbps (EWS7928P / EWS1200-28TFP) / 104 Gbps ( EWS7952P / EWS7952FP ) / 128 Gbps (ECS1528系列) / 176 Gbps ( ECS1552系列)
封包轉發速率11.9 Mpps (ECS1008P) / 14.88 Mpps (EWS2910P) / 17.856 Mpps (ECS1112FP) / 41.664 Mpps ( EWS7928P / EWS1200-28TFP / 77.376 Mpps (EWS7952P / ES7952FP) 95.23Mpps (ECS1528系列)/ 130.95 Mpps (ECS1552系列)
MAC 地址大小8K (ECS1008P / EWS2910P / ECS1112FP / EWS7928P / EWS1200-28TFP) / 16K (EWS7952P / EWS7952FP / ECS1528系列)32K (ECS1552系列)
封包緩衝記憶體512 KB ECS1008P / EWS2910P / ECS1112FP / EWS7928P / EWS1200-28TFP) / 1.5 MB (ECS1528系列) / 2.0MB (EWS1552系列)
電源100 to 240 VAC 50/60Hz
VLANsVID from 1-4094 (Max. 256 groups)
軟體
軟體
L2 功能802.1d Spanning tree, Loopback Detection, Multicast Filtering, IGMP Multicast Forwarding, IGMP Snooping, MLD Multicast Forwarding, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, IPv4 DHCP Snooping Source MAC Address Check-up, ARP Inspection, ARP Packet Validation (additional validation checks), Voice VLAN, Port-based VLAN, Protocol-Based VLAN, CoS Mapping, 802. 1X Radius Authentication Protocol, IEEE 802. 3az Energy Efficient Ethernet (EEE), Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/ Backup, Simple Network, Time Protocol (SNTP), SYSLOG, 802.1d Spanning tree
Multicast GroupMax 256 groups
MLD SnoopingMLD Snooping: v1
Trust ModeCos/802.1p DSCP CoS/802.1p-DSCP
Scheduling MechanismStrict/WRR/Strict + WRR
Bandwidth ControlPort-based bandwidth control (Ingress/Egress)
Access Control List (ACL)MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Timebase ACL
Web Graphical User Interface (GUI)HTTP IPv4 / IPv6, HTTPS IPv4 / IPv6
SSL CertificateCertificate / Key Import
SNMPSNMP v1/v2c/v3 Support
環境
環境
工作溫度0 to 40° C (32 to 104° F)
濕度(非冷凝)5% ~95%
硬體
硬體
尺寸 (mm)240 x 105 x 27 (ECS1008P / EWS2910P)
尺寸 (mm)330 x 230 x 44 (ECS1112FP)
尺寸 (mm)440 x 200 x 44 (ECS1528 / EWS7928P)
尺寸(mm)440 x 260 x 44 (EWS1200-28TFP / EWS7928P / ECS1528FP / ECS1552 / EWS7952P)
尺寸 (mm)440 x 310 x 44 (ECS1552FP)
尺寸 (mm)440 x 410 x 44 (EWS7952FP)
安裝形式Desktop (ECS1008P / EWS2910P) / 13”1U (ECS1112FP) / 19”1U ( EWS7928P / EWS1200-28TFP / EWS7952P / EWS7952FP / ECS1528系列 / EWS1552系列)
