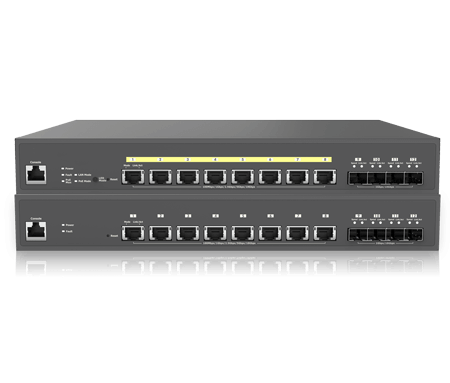

10G 多速網路交換器

Model: ECS5512, ECS5512FP



  • 可執行本地內部管理或透過雲端管理網路
  • 8個100/1000/2500/5000/10000 Mbps千兆以太網端口
  • 4個1000/10000 SFP +端口
  • PoE機種具備8個網路供電埠口,最高支援802.bt
  • 機架式安裝模組
  • 具備齊全的第二層/次第三層交換功能


交換器等級 Layer 2+
連接埠標準 802.3u 100Base-TX Ethernet , 802.3ab 1000Base-T Ethernet, 802.3bz 2500Base-T Ethernet, 802.3an 10GBase-T Ethernet , 802.3x Full-Duplex Flow Control
多速連接埠 8 x 10G
SFP+ 光纖埠口 4
網路供電埠口 Ports 1 - 8 (ECS5512FP)
網路供電標準 802.3af/at/bt (ECS5512FP)
最大供電能力 420W
交換能力 240 Gbps
封包轉發速率 178.57 Mpps
MAC 地址大小 32K
封包緩衝記憶體 1.5 MB
電源 100 to 240 VAC 50/60Hz
VLANs VID from 1-4094 (Max. 256 groups)
L2 功能 802.1d Spanning tree, Loopback Detection, Multicast Filtering, IGMP Multicast Forwarding, IGMP Snooping, MLD Multicast Forwarding, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, IPv4 DHCP Snooping Source MAC Address Check-up, ARP Inspection, ARP Packet Validation (additional validation checks), Voice VLAN, Port-based VLAN, Protocol-Based VLAN, CoS Mapping, 802. 1X Radius Authentication Protocol, IEEE 802. 3az Energy Efficient Ethernet (EEE), Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/ Backup, Simple Network, Time Protocol (SNTP), SYSLOG, 802.1d Spanning tree
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
Trust Mode Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism Strict/WRR/Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/Egress)
Access Control List (ACL) MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Timebase ACL
Web Graphical User Interface (GUI) HTTP IPv4/IPv6, HTTPS IPv4/IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support 環境溫度 Operating: 32 to 104° F/0 to 40° C
工作溫度 0°C ~ 50°C (32°F ~ 122°F )
濕度(非冷凝) 5% ~ 95%
尺寸(mm) 330 x 230 x 44
安裝形式 13”1U
