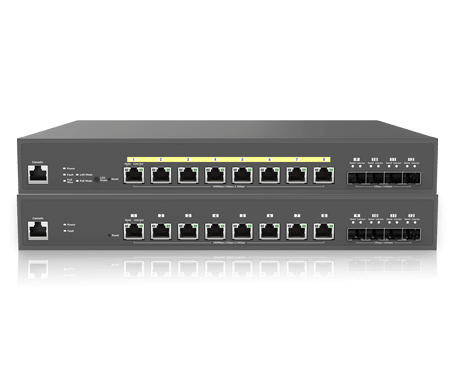

2.5G 多速網路交換器

Model: ECS2512, ECS2512FP

產品特點

具有網路管理功能的多速第二層/次第三層PoE+乙太網路供電交換器。具有簡化的網路配置,管理功能以及易於使用的管理介面。

  • 可執行本地內部管理或透過雲端管理網路
  • 8個100/1000/2500 Mbps千兆以太網端口
  • 4個1000/10000 SFP +端口
  • PoE機種具備8個網路供電埠口,最高支援802.bt
  • 機架式安裝模組
  • 具備齊全的第二層/次第三層交換功能

產品規格

類別
項目
規格
技術
技術
交換器等級Layer 2+
CPURealtek RTL9302c
MACRealtek RTL9302c
PHYBroadcom BCM50998
PoE ChipsetBroadcom BCM59121 (ECS2512FP)
連接埠標準802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3bz 2500Base-T Ethernet 802.3x Full-Duplex Flow Control
多速連接埠8 x 2.5G
SFP+ 光纖埠口4
網路供電埠口Ports 1 - 8 (ECS2512FP)
網路供電標準802.3af/at/bt (ECS2512FP)
最大供電能力240W
交換能力120 Gbps
封包轉發速率89.29 Mpp
MAC 地址大小32K
封包緩衝記憶體1.5MB
電源100 to 240 VAC 50/60Hz
VLANsVID from 1-4094 (Max. 256 groups)
軟體
軟體
L2 功能802.1d Spanning tree, Loopback Detection, Multicast Filtering, IGMP Multicast Forwarding, IGMP Snooping, MLD Multicast Forwarding, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, IPv4 DHCP Snooping Source MAC Address Check-up, ARP Inspection, ARP Packet Validation (additional validation checks), Voice VLAN, Port-based VLAN, Protocol-Based VLAN, CoS Mapping, 802. 1X Radius Authentication Protocol, IEEE 802. 3az Energy Efficient Ethernet (EEE), Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/ Backup, Simple Network, Time Protocol (SNTP), SYSLOG, 802.1d Spanning tree
Multicast GroupMax 256 groups
MLD SnoopingMLD Snooping: v1
Trust ModeCos/802.1p DSCP CoS/802.1p-DSCP
Scheduling MechanismStrict/WRR/Strict + WRR
Bandwidth ControlPort-based bandwidth control (Ingress/Egress)
Access Control List (ACL)MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Timebase ACL
Web Graphical User Interface (GUI)HTTP IPv4/IPv6, HTTPS IPv4/IPv6
SSL CertificateCertificate/Key Import
SNMPSNMP v1/v2c/v3 Support
環境
環境
溫度0°C ~ 50°C (32°F ~ 122°F)
濕度(非冷凝)5% ~ 95%
硬體
硬體
尺寸(mm)330 x 230 x 44
安裝形式13”1U
