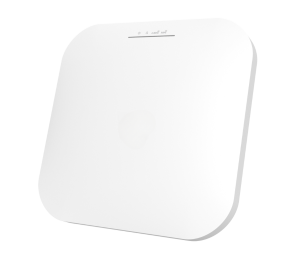

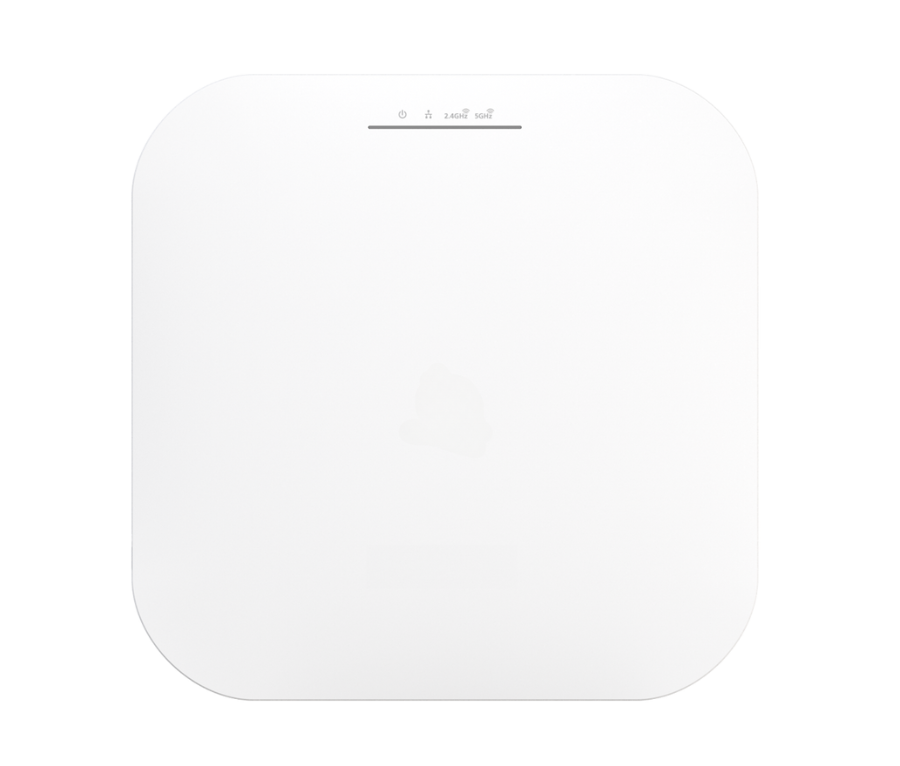

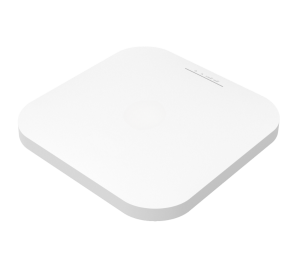

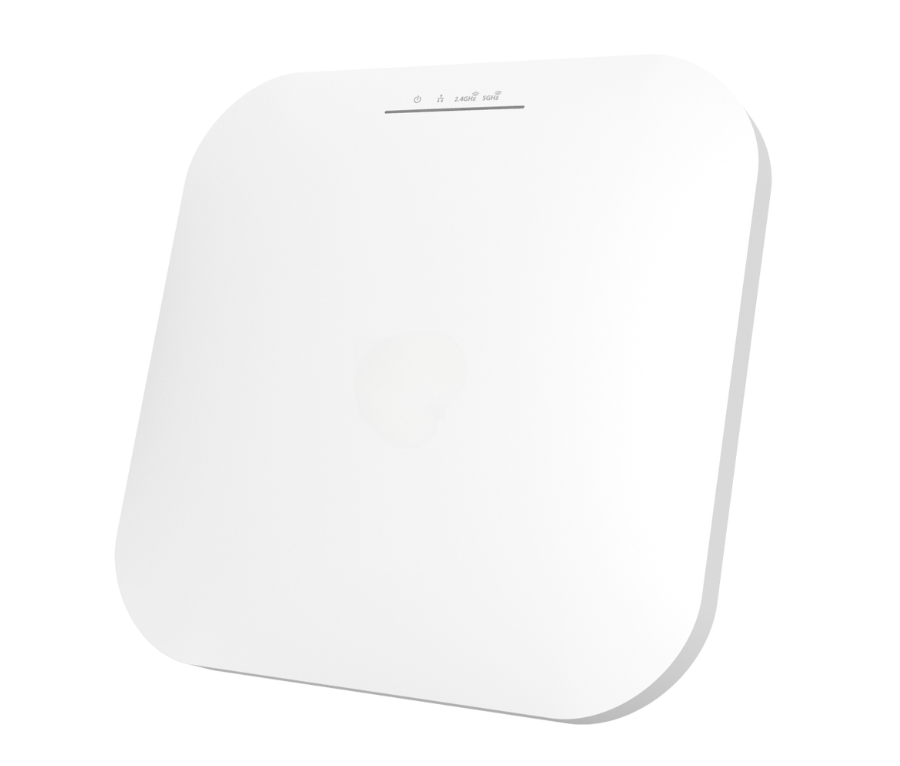

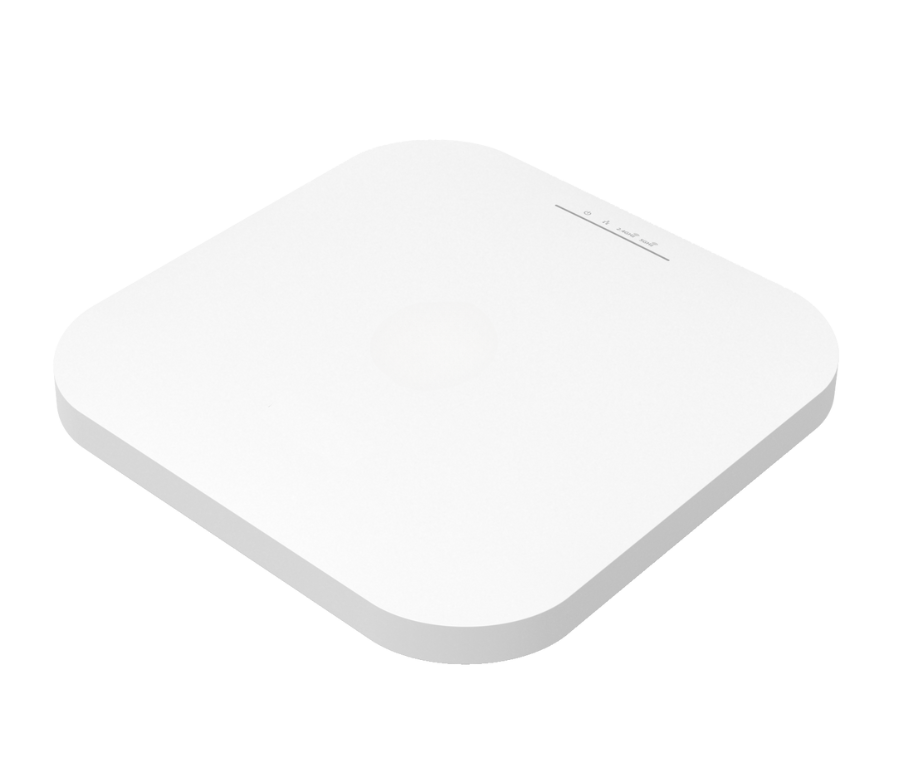

Wi-Fi 6 (11ax) Dual-band Access Point

Model: ECW230

Product Highlights

Wi-Fi 6 4×4 Managed Indoor Wireless Access Point features 802.11ax technology, which deepens and extends the capabilities of Wi-Fi and harnesses EnGenius enterprise-level management and AP features for use in high-capacity environments. The slim, low-profile AP is loaded with new hardware components, such as a Qualcomm chipset, to run more efficiently and consume less power for maximum theoretical speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency). To give your network elevated security, WPA3 and WPA2-EAS make connecting client and IoT devices more secure and easier.

  • Choose the access point mode (AP Mode) or mesh network connection mode (Mesh Mode) according to your management and deployment needs
  • Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
  • Support WPA3 and WPA2-AES authentication
  • 4 x 5 GHz 3 dBi, 4 x 2.4GHz 3dBi Integrated Omni-Directional Antenna
  • 2,400 Mbps in 5 GHz frequency band & 1,148 Mbps in 2.4 GHz frequency band

Specifications

Category
Item
Specification
Technical
Technical
Wi-Fi Standard Wi-Fi 6 6E (802.11ax), 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
Processor Qualcomm® Quad-Core ARM Cortex A53s @ 2.2GHz Processor
Antenna 4 x 5 GHz 3 dBi, 4 x 2.4 GHz 3dBi Integrated Omni-Directional Antenna
Power Source Power-over-Ethernet: 802.3at Input 12VDC /2A Power Adapter
Maximum Power Consumption 19.5W
Wireless & Radio
Wireless & Radio
Frequency 5GHz, 2.4GHz three-radio synchronization architecture
Operation Mode Access Point / Mesh / (WDS) / WDS AP/ WDS Station
Frequency Radio (5 GHz) 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Frequency Radio (2.4 GHz) 2400 MHz ~ 2835 MHz
Transmit Power (5 GHz / 2.4 GHz) Up to 23dBm
Tx Beamforming (TxBF) Four(4) spatial streams Multiple (MU)-MIMO
OFDMA Yes, Multiple (MU)-MIMO
MU-MIMO Yes, Multiple (MU)-MIMO
Management
Management
Management System Yes
Environment
Environment
Operating Temperature 0 ºC~40 ºC (32ºF~104ºF)
Storage Temperature -40 ºC~80 ºC (-22 ºF~176 ºF)
Humidity (non-condensing) Operating: 90% or less Storage: 90% or less
Device
Device

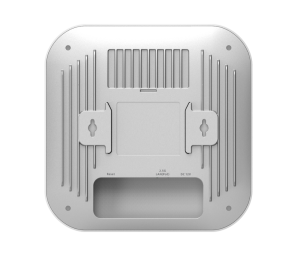

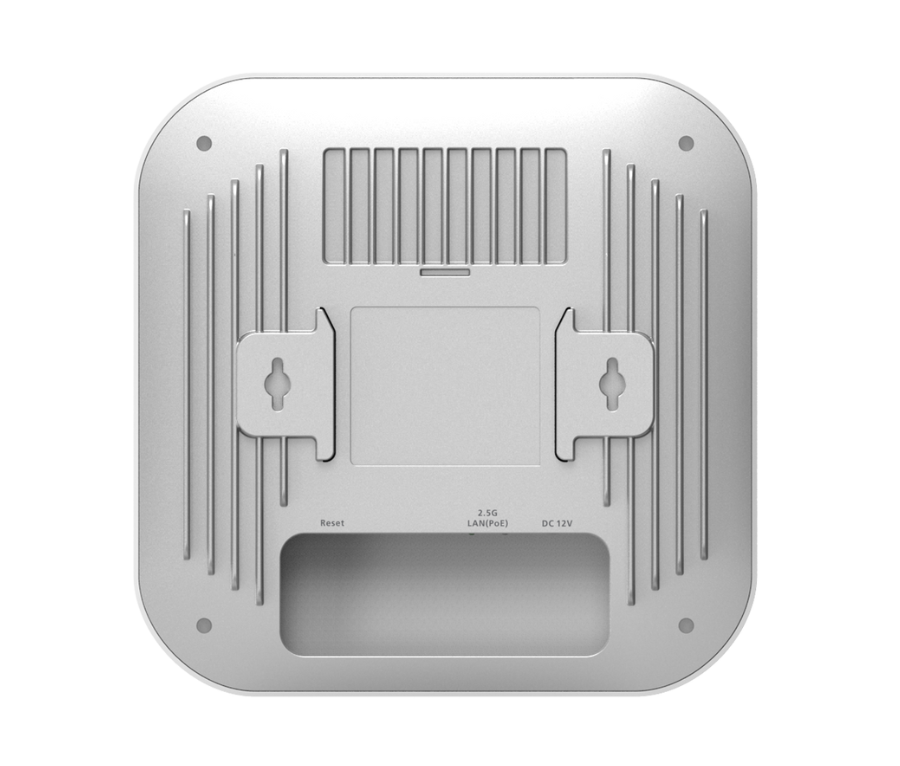

Physical Interface 1 x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port, 1x DC Jack, 1 x Reset Button
LED Indicator 1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz, 1 x BLE, 1 x SCAN
